Genesis v1.6+ Vacuum Pump Cable

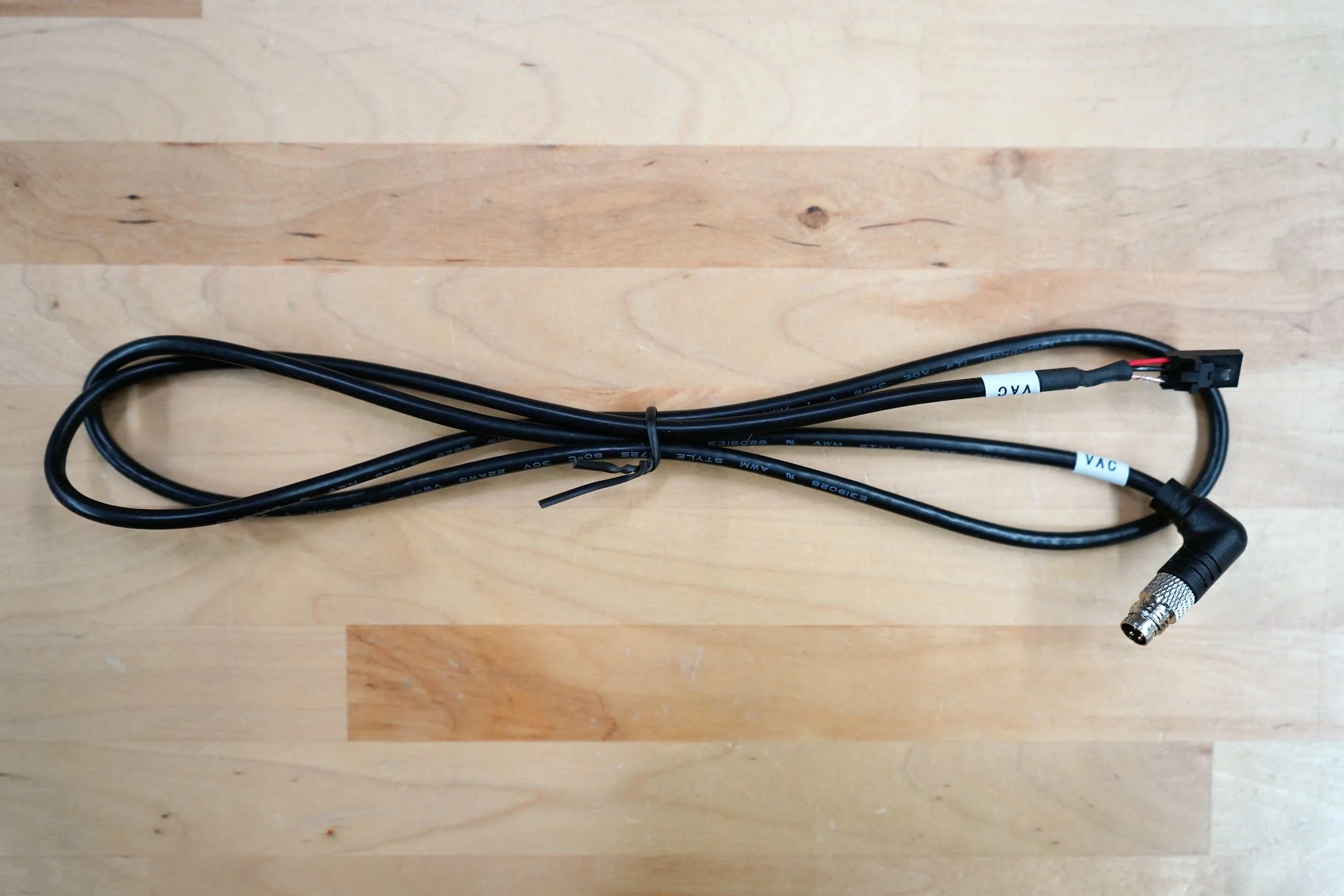

This two-part cable connects the vacuum pump with EMI filter to the v1.6+ Farmduino. The cables feature a 90-degree waterproof screw-together connector between the Y-axis and Z-axis sections of the cable.
The overall length of the cable (a Y-axis section + the Z-axis section) is 3.6m for Genesis and 5.1m for Genesis XL.
Note that there areĀ threeĀ versions of theĀ cable with different connectors that plug into the Vacuum Pump and Farmduino.Ā Ensure you select the correct version of theĀ cable that is compatible with your vacuum pump and Farmduino.
VersionĀ 1 has the following connectors:

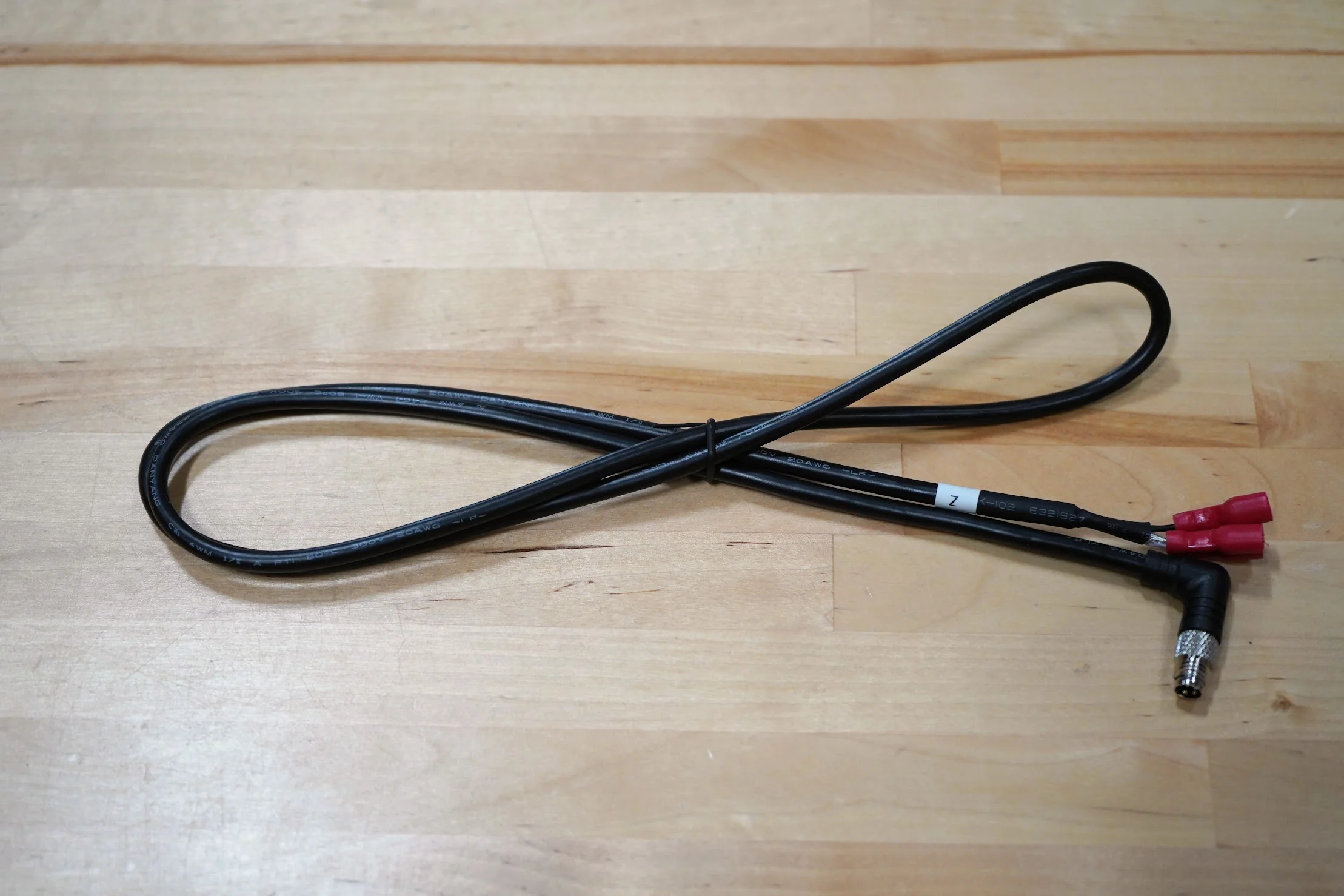

- Vacuum Pump End: Three 3/16" insulated quick-connect terminals

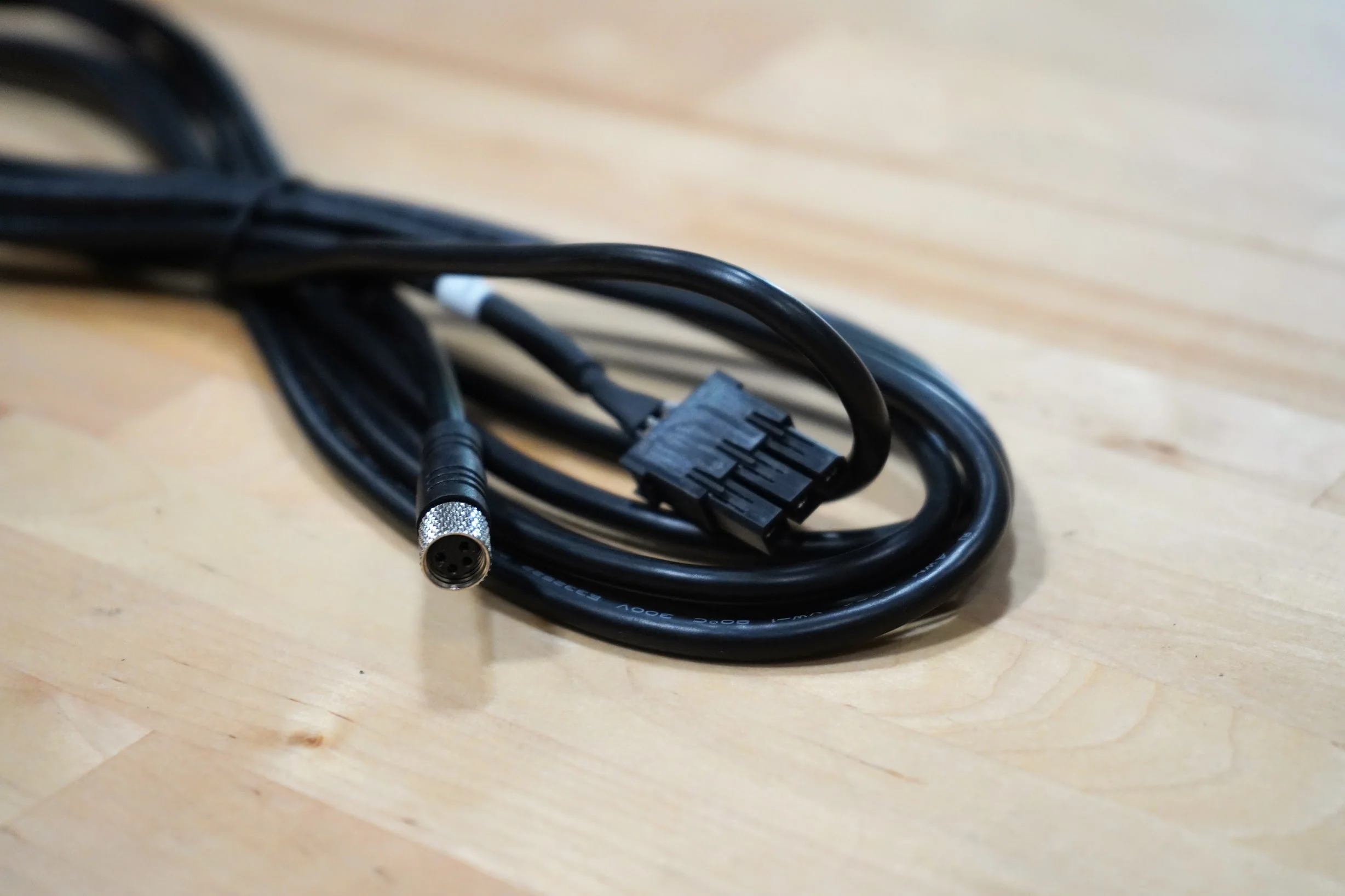

- Farmduino End: Large 3-pin black plug (Molex PartĀ 2004561213)
Version 2 has the following connectors:
- Vacuum Pump End: Three 3/16" insulated quick-connect terminals

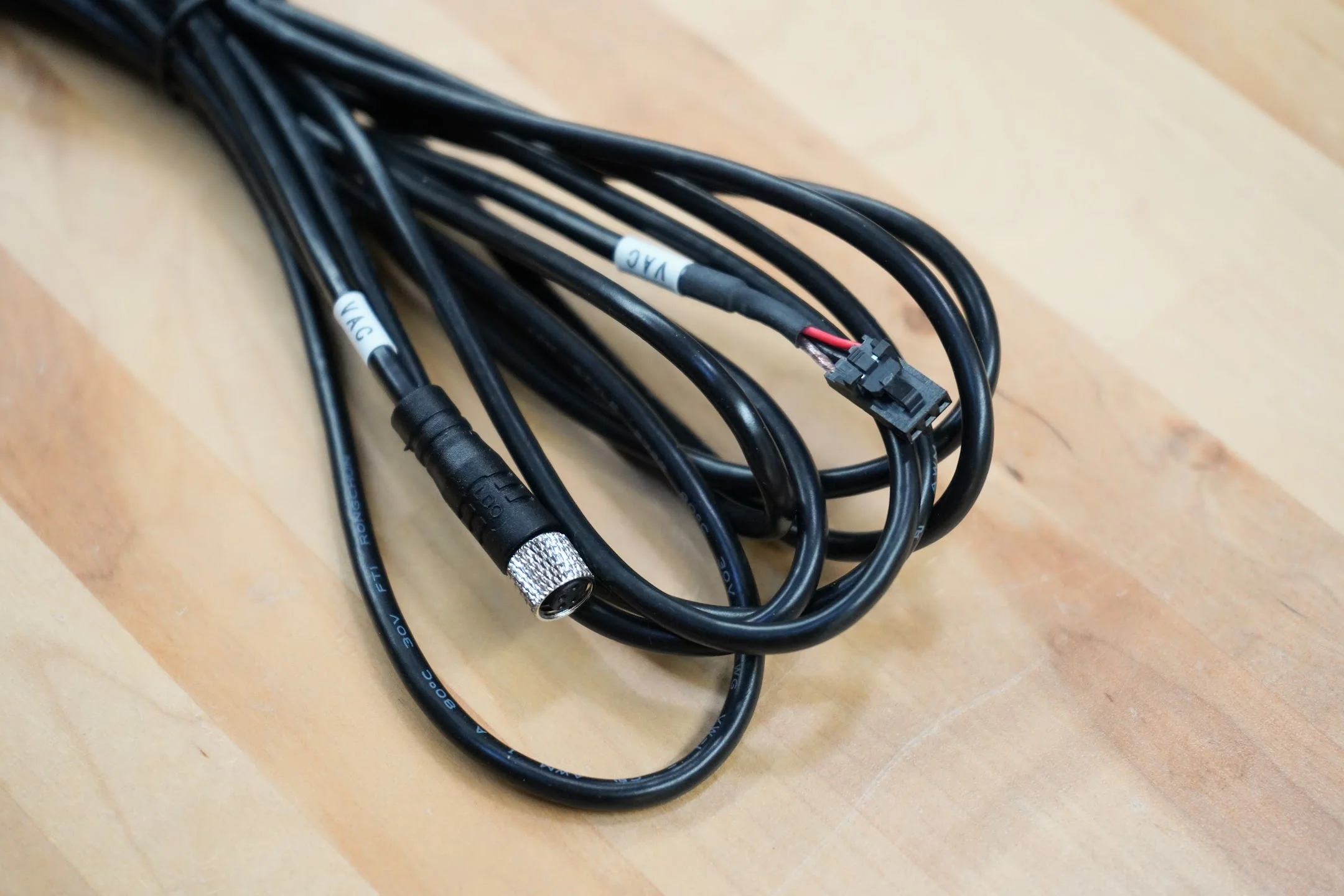

- Farmduino End:Ā Small 3-pin 2.54mm pitch black plug (Molex PartĀ 50579403)
Version 3 (choose this one if you have a v1.7 kit) has the following connectors:
- Vacuum Pump End: Small 3-pin 2.54mm pitch black plug (Molex PartĀ 50579403)
- Farmduino End:Ā Small 3-pin 2.54mm pitch black plug (Molex PartĀ 50579403)
Wire: 20AWG-2C shielded stranded copper cable
Rated Voltage: 300V
Inner Colors: White and black
Outer Color: Black
